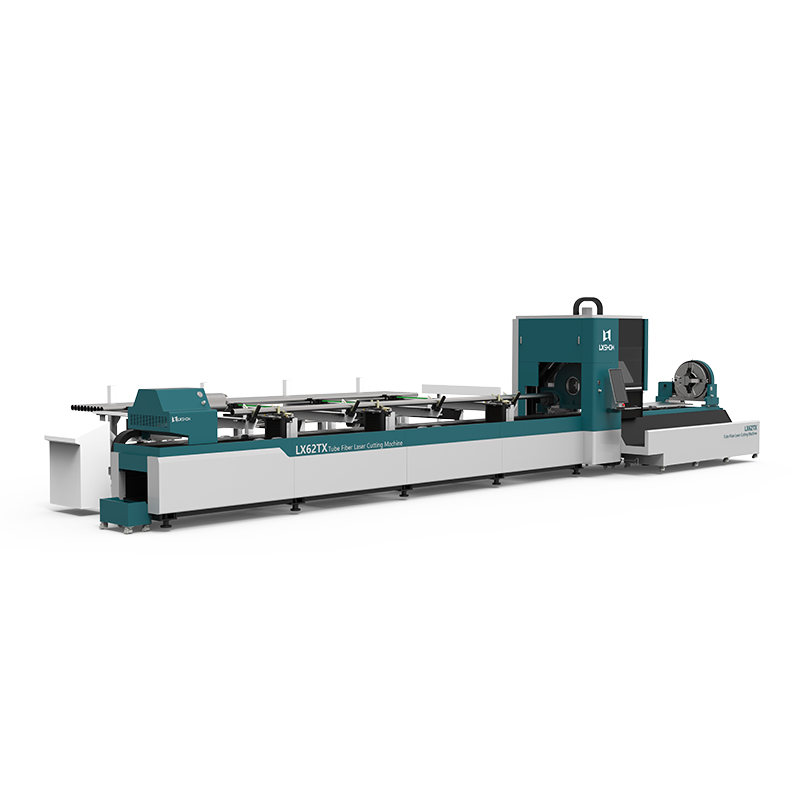

Machine Model | LX62TX |
Power of Generator | 1000-6000W |
Dimension | 12100*2200*2880mm |
Clamping Range | Φ20-Φ220/Φ20-Φ350 |
Repeated Positioning Accuracy | ±0.02mm |
Specified Voltage And Frequency | 380V 50/60HZ |
The Segmented Rectangle Laser Tube Welded Bed
Good rigidity, high precision, no deformation during the life cycle;
Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance
Pneumatic Chunk Clamping Design
It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)
Professional Clamp Design
Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability
Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting
The Absolute Value Servo Motor
System is equipped with servo motor, boot to homework, do not need to return to zero operation, power outages, a key recovery cutting operation
Intelligent Alarm System
It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment
Stroke intelligent protection
Detect whole process of cutting head working, quickly feedback the risk and stop it. Double protection with fixed limit to improve equipment and personal safety and reduce risk
